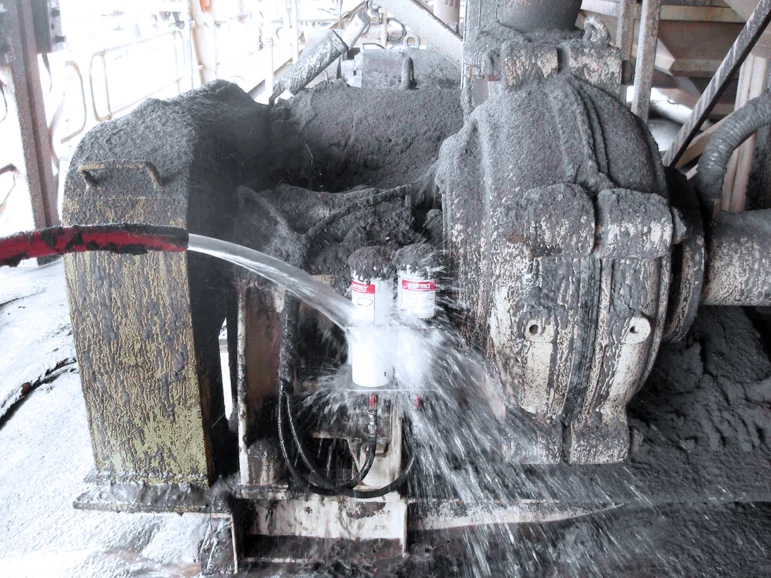

That the STAR VARIO will operate under high vibration?
perma
CLASSIC
Streaming
Video
Real
Player
56K
Cable/DSL
Windows
Media
56K
Cable/DSL
This
streaming video describes
the operation of a perma
electrochemical unit.
perma
PRO
Streaming
Video
PRO
PRO
MP-6
ECOSY
Click
on the links above to
begin playing the video. If
you have trouble
playing
the video, right click on the
link and save the file to
disk.
|
Sales & Support - Contact us for more
information on our products
perma
automatic lubricators are hard at work worldwide. On roller and slide bearings,
chains, folders, pumps, presses, motors, open gears, conveyors and a host of
many other applications with virtually any lubricant.
perma lubricators are available in a variety of
styles, so they may be matched for optimal performance. Their rugged
construction and simplicity of operation ensure dependability and ease of
service when they need it.
|
Electrochemical Lubricators |
|
 |
 |
 |
|
CLASSIC |
FUTURA |
FROST |
|
Housing design:
Drive:
Discharge Period:
Lubricant Volume:
Ambient temp.:
Pressure build-up: |
Metal
Electrochemical
1,3,6,12 months
120cc
32 to 104 F
Max. 4 bar/58 psi |
Housing design:
Drive:
Discharge Period:
Lubricant Volume:
Ambient temp.:
Pressure build-up: |
Transparent Plastic
Electrochemical
1,3,6 months
100cc
32 to 104 F
Max. 4 bar/58 psi |
Housing design:
Drive:
Discharge Period:
Lubricant Volume:
Ambient temp.:
Pressure build-up: |
Metal
Electrochemical
1,3 months
120cc
-13 to 50 F
Max. 4 bar/58 psi |
|
Electromechanical
Lubricators |
|
 |
 |
|
STAR VARIO |
STAR CONTROL |
|
Housing design:
Drive:
Exchange set:
Discharge Period:
Lubricant Volume:
Ambient temp.:
Pressure build-up: |
Plastic
Electromechanical, re-usable
Filled LC-unit & battery pack
1,3,6,12 months
60cc, 120cc or 250cc
14 to 122 F
Max. 5 bar/75 psi |
Housing design:
Drive:
Exchange set:
Discharge Period:
Lubricant Volume:
Ambient temp.:
Pressure build-up: |
Plastic
Electrochemical, ext. power
Filled LC-unit
Time / Impulse controlled
60cc, 120cc or 250cc
14 to 122 F
Max. 5 bar/75 psi |
|
Multi-point Lubricators |
|
 |
 |
 |
|
PRO
PRO MP-6 |
PRO CONTROL
PRO CONTROL MP-6 |
ECOSY |
|
Material:
Metal housing / transparent plastic
Drive:
Electromechanical ramp pump
Lubrication points:
1 to 6
Exchange set:
PRO LC-unit (250cc/500cc) plus battery
pack
Lubricant volume:
250cc or 500cc
Discharge period:
Adjustable from 1 day to 24 months
Ambient temperature:
-4 to 140 F
Pressure build-up:
Max. 25 bar/360 psi |
Material:
Metal housing / transparent plastic
Drive:
Electromechanical ramp pump
Lubrication points:
1 to 6
Exchange set:
PRO LC-unit (250cc/500cc)
Lubricant volume:
250cc or 500cc
Discharge period:
Machine-controlled
Ambient temperature:
-4 to 140 F
Pressure build-up:
Max. 25 bar/360 psi
Power supply:
External power supply
(15...30V DC/typ. 0.2A) |
Reservoir volume:
7 liters
Lubrication points:
1 to 6
Refill:
On-site, manually
Pump capacity:
0-999 ml / 1000 h
programmable in 1 ml steps
Discharge period:
Machine-controlled / Time-controlled
Ambient temperature:
-4 to 140 F
Pressure build-up:
Max. 10 bar/145 psi
Input supply voltage:
85-240V AC 50/60 Hz / typ. 20W |
perma can be used
on virtually any lubrication point
Click for
application slideshows
Today, as in 1964, there is only one
standard for the industry and that is perma, the global leader in single point
automatic lubricators.  |
