INSTALLATION KIT STAR Heavy Duty with welded manifold

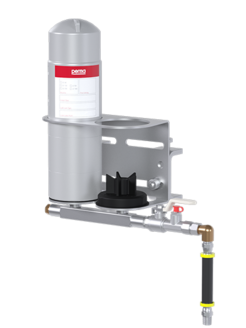

KIT STAR Heavy Duty 2-point 65mm beam clamp 10 ft hose welded manifold

Part #: 907501

More info

Content:

1 x 900905 Bracket STAR HD C-section 2pt G1/4 F welded manifold preassembly
1 x 902294 Plug G1/4 M for Manifold (Br) (O)
2 x 116602 Support flange STAR with cover clip for protection cap
2 x 109999 Protection cap STAR HD perma (Pl)
2 x 109958 Beam Clamp 2.56 inch / 65 mm (SS)
1 x 113982 Purge connection with manual valve R1/4 M x 1/4 NPT F (Br/NP)
1 x 104827 Angle 90° G1/4 M x G1/4 F (Br)
2 x 902160 Hose connector 1/4" NPT M for hose iØ 3/8" push on (SS)
10 x 901006 Hose Heavy Duty up to 260 °F / 127 °C iØ 3/8" black (ft)
1 x 901008 Reducer 1/8" NPT M x 1/4" NPT F (NP)
1 x 901009 Reducer 1/4-28 UNF M x 1/4" NPT F (NP)

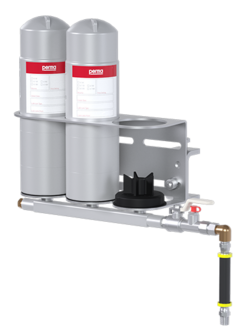

KIT STAR Heavy Duty 3-point 65mm beam clamp 10 ft hose welded manifold

Part #: 907504

More info

Content:

1 x 900906 Bracket STAR HD C-section 3pt G1/4 F welded manifold preassembly
1 x 902294 Plug G1/4 M for Manifold (Br) (O)
3 x 116602 Support flange STAR with cover clip for protection cap
3 x 109999 Protection cap STAR HD perma (Pl)
2 x 109958 Beam Clamp 2.56 inch / 65 mm (SS)
1 x 113982 Purge connection with manual valve R1/4 M x 1/4 NPT F (Br/NP)
1 x 104827 Angle 90° G1/4 M x G1/4 F (Br)
2 x 902160 Hose connector 1/4" NPT M for hose iØ 3/8" push on (SS)
10 x 901006 Hose Heavy Duty up to 260 °F / 127 °C iØ 3/8" black (ft)
1 x 901008 Reducer 1/8" NPT M x 1/4" NPT F (NP)
1 x 901009 Reducer 1/4-28 UNF M x 1/4" NPT F (NP)

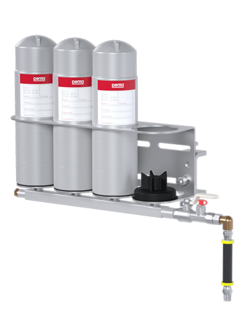

KIT STAR Heavy Duty 4-point 65mm beam clamp 10 ft hose welded manifold

Part #: 907507

More info

Content:

1 x 900907 Bracket STAR HD C-section 4pt G1/4 F welded manifold preassembly (O)
1 x 902294 Plug G1/4 M for Manifold (Br) (O)
4 x 116602 Support flange STAR with cover clip for protection cap
4 x 109999 Protection cap STAR HD perma (Pl)
2 x 109958 Beam Clamp 2.56 inch / 65 mm (SS)
1 x 113982 Purge connection with manual valve R1/4 M x 1/4 NPT F (Br/NP)
1 x 104827 Angle 90° G1/4 M x G1/4 F (Br)
2 x 902160 Hose connector 1/4" NPT M for hose iØ 3/8" push on (SS)
10 x 901006 Hose Heavy Duty up to 260 °F / 127 °C iØ 3/8" black (ft)
1 x 901008 Reducer 1/8" NPT M x 1/4" NPT F (NP)
1 x 901009 Reducer 1/4-28 UNF M x 1/4" NPT F (NP)

KIT STAR Heavy Duty 2-point cage hanger 10 ft hose welded manifold

Part #: 907502

More info

Content:

1 x 900905 Bracket STAR HD C-section 2pt G1/4 F welded manifold preassembly
1 x 902294 Plug G1/4 M for Manifold (Br) (O)
2 x 116602 Support flange STAR with cover clip for protection cap
2 x 109999 Protection cap STAR HD perma (Pl)
2 x 114019 Cage Hanger Arm single hook (SS)
1 x 113982 Purge connection with manual valve R1/4 M x 1/4 NPT F (Br/NP)
1 x 104827 Angle 90° G1/4 M x G1/4 F (Br)
2 x 902160 Hose connector 1/4" NPT M for hose iØ 3/8" push on (SS)
10 x 901006 Hose Heavy Duty up to 260 °F / 127 °C iØ 3/8" black (ft)
1 x 901008 Reducer 1/8" NPT M x 1/4" NPT F (NP)
1 x 901009 Reducer 1/4-28 UNF M x 1/4" NPT F (NP)

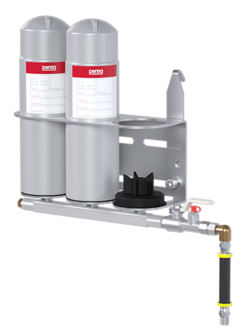

KIT STAR Heavy Duty 3-point cage hanger 10 ft hose welded manifold

Part #: 907505

More info

Content:

1 x 900906 Bracket STAR HD C-section 3pt G1/4 F welded manifold preassembly
1 x 902294 Plug G1/4 M for Manifold (Br) (O)
3 x 116602 Support flange STAR with cover clip for protection cap
3 x 109999 Protection cap STAR HD perma (Pl)
2 x 114019 Cage Hanger Arm single hook (SS)
1 x 113982 Purge connection with manual valve R1/4 M x 1/4 NPT F (Br/NP)
1 x 104827 Angle 90° G1/4 M x G1/4 F (Br)
2 x 902160 Hose connector 1/4" NPT M for hose iØ 3/8" push on (SS)
10 x 901006 Hose Heavy Duty up to 260 °F / 127 °C iØ 3/8" black (ft)
1 x 901008 Reducer 1/8" NPT M x 1/4" NPT F (NP)
1 x 901009 Reducer 1/4-28 UNF M x 1/4" NPT F (NP)

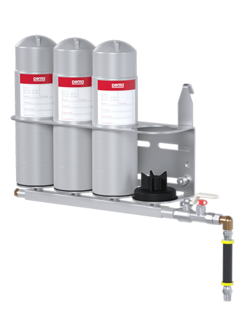

KIT STAR Heavy Duty 4-point cage hanger 10 ft hose welded manifold

Part #: 907508

More info

Content:

1 x 900907 Bracket STAR HD C-section 4pt G1/4 F welded manifold preassembly (O)
1 x 902294 Plug G1/4 M for Manifold (Br) (O)
4 x 116602 Support flange STAR with cover clip for protection cap
4 x 109999 Protection cap STAR HD perma (Pl)
2 x 114019 Cage Hanger Arm single hook (SS)
1 x 113982 Purge connection with manual valve R1/4 M x 1/4 NPT F (Br/NP)
1 x 104827 Angle 90° G1/4 M x G1/4 F (Br)
2 x 902160 Hose connector 1/4" NPT M for hose iØ 3/8" push on (SS)
10 x 901006 Hose Heavy Duty up to 260 °F / 127 °C iØ 3/8" black (ft)
1 x 901008 Reducer 1/8" NPT M x 1/4" NPT F (NP)
1 x 901009 Reducer 1/4-28 UNF M x 1/4" NPT F (NP)
