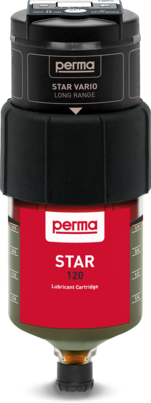

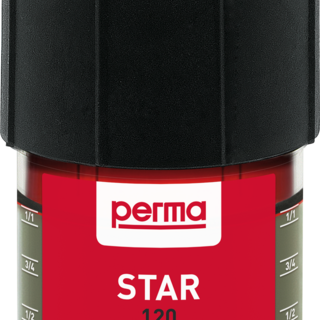

O perma STAR VARIO LONG RANGE é usado para lubrificação de ponto único de rolamentos de rolos e deslizantes, guias deslizantes, engrenagens abertas, cremalheiras, fusos, vedações de eixo e correntes. Graças à aplicação precisa do lubrificante, o perma STAR VARIO LONG RANGE é ideal para a lubrificação de motores elétricos com quantidades especificadas de lubrificante.
Correias transportadoras
Bombas
Exaustores/
ventiladores
Motores elétricos
Correntes
Vedantes
Fusos
Engrenagens abertas
Rolamentos deslizantes
Rolamentos
Função LONG RANGE
- Operação simples via perma CONNECT
- Configuração, controle e manutenção a uma distância de até 2 km
- Gerenciamento de até 2.000 pontos de lubrificação via Gateway LONG RANGE
Gateway LONG RANGE
- Cada gateway pode receber dados de 8 lubrificadores simultaneamente e suportar até um total de 2.000 lubrificadores
- Os gateways transmitem atualizações de status e comandos de controle de e para lubrificadores em um raio de até 2 km*.
- Utilize o backhaul de celular 4G por meio do cartão SIM de dados fornecido
Status operacional
- O visor LCD retroiluminado com controle por botão de pressão fornece configurações de tempo em meses e semanas para os tamanhos de 60, 120, 250 e 500 cc
- Uma ampla gama de opções de configuração de horário semanal e mensal proporciona flexibilidade no planejamento de serviços
- Luzes de sinalização de LED para indicação de status

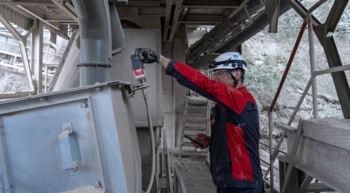

PORTFÓLIO DE SERVIÇOS
| Unidade | Eletromecânica |
|---|---|
| Fonte de alimentação | Kit de bateria STAR VARIO 4,5 V |
| Carcaça | Plástico transparente |
| Tempo de dispensação | 1, 2, 3, ..., 12 meses | 1, 2, 3, ..., 52 semanas STAR LC 60: + 15, 18, 21, 24 meses STAR LC 500: máx. 6 meses |
| Volume de lubrificante | 60, 120, 250, 500 cc | 2,03, 4,06, 8,45, 16,91 fl. oz. |
| Temperatura operacional* | -4 °F** a 140 °F | -20 °C a 60 °C (alcalina) | -40 °F** a 140 °F | -40 °C a 60 °C (lítio) |
| Acúmulo de pressão | 109 psi | 7,5 bar |
| Classe de proteção | IP 65 | IP 67 |
| Lubrificantes | Graxa até NLGI 2 | óleo |
| Comprimentos máximos dos tubos | 16 pés | 5 m |
| CE | ✓️ |
| Ex | ✓️ |
| IEC Ex | ✓️ |
| MET | ✓️ |
*Para obter funcionalidade abaixo de -4° F/-20° C, deve ser usado o kit de bateria STAR VARIO de baixa temperatura (lítio).
**Uso apenas com lubrificante adequado de baixa temperatura.
Dúvidas?
Frequently Asked Questions About perma STAR VARIO LONG RANGE
Find answers to common questions about remotely monitoring, configuring and using perma STAR VARIO LONG RANGE for automatic single-point lubrication.
perma STAR VARIO LONG RANGE is used for the automatic single-point lubrication of roller and sliding bearings, sliding guides, open gears, gear racks, spindles, shaft seals and chains. Its precise lubricant delivery also makes it suitable for electric motors that require defined lubricant quantities. The system is especially useful when these lubrication points are hard to access, hazardous or widely distributed and need to be monitored or managed remotely.
Both systems provide automatic single-point lubrication and remote monitoring through perma CONNECT. The primary difference is communication range. The Bluetooth model is designed for nearby wireless access, while perma STAR VARIO LONG RANGE uses LoRa wireless technology and a Gateway LONG RANGE to communicate over distances of up to 1.2 miles, or 2 kilometers, under suitable conditions.
The lubricator communicates with a Gateway LONG RANGE using LoRa wireless technology. The gateway then transmits the information through a cellular network to perma CONNECT, where authorized users can monitor and manage connected lubrication systems through a web interface.
A Gateway LONG RANGE is required to transmit data between perma STAR VARIO LONG RANGE units and perma CONNECT. The lubricator itself continues to dispense lubricant automatically according to its programmed settings, but the gateway enables long-range remote monitoring and control.
Through perma CONNECT, users can receive information including system status, date and time, ambient temperature and remaining lubricant fill level. The system also sends a message when its operating status changes, helping maintenance teams identify units that may require attention.
perma STAR VARIO LONG RANGE can receive commands remotely through perma CONNECT and Gateway LONG RANGE. Available actions include turning the lubricator on or off, changing discharge settings and initiating purge cycles.
perma CONNECT is designed to support centralized monitoring of numerous lubrication points. A Gateway LONG RANGE can support up to 2,000 lubrication points. Actual capacity may vary depending on facility layout, gateway placement and communication conditions.
The wireless connection can reach up to 1.2 miles, or 2 kilometers, between the lubricator and Gateway LONG RANGE under suitable conditions. Actual range may vary based on equipment, buildings, obstructions, gateway placement and the surrounding industrial environment.
Yes. perma STAR VARIO LONG RANGE continues dispensing lubricant according to its configured settings even if communication with the gateway or perma CONNECT is temporarily unavailable. The wireless connection supports remote monitoring and control but is not required for the unit’s automatic lubrication cycle. This is an inference from perma’s description of the system as fully automatic with the same core functionality as the standard STAR VARIO.
The system can dispense grease up to NLGI 2 or oil. It is compatible with STAR lubricant canisters in 60, 120, 250 and 500 cc sizes. The appropriate lubricant, canister size and discharge setting should be selected based on the equipment requirements and operating conditions.

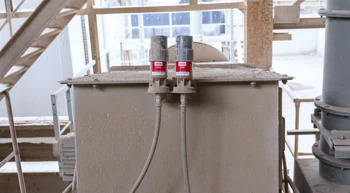

Before installation, clean the lubrication point and prefill it with the same lubricant used in the lubrication system. Any lubrication lines and connecting components should also be prefilled. Confirm that the mounting location, lubricant, line length and connection components are suitable for the application, then install and activate the system according to the product instructions. The Gateway LONG RANGE should be positioned according to perma’s guidance to support reliable communication with the connected lubrication systems.
