INSTALLATION KIT STAR rail mount (for rails up to 1 1/2 inch diameter)

Content:

• 1 109664 Bracket STAR HD C-section 1pt G1/4 F (SS)
• 1 116602 Support flange STAR with cover clip for protection cap
• 1 109999 Protection cap STAR HD perma (Pl)
• 2 109952 U-Bolt
• 1 113972 Purge connection with manual valve R1/4 M x G1/4 F (Br/NP)
• 1 900500 Angle 90° R1/4 M x G1/4 F (SS)
• 2 912169 Hose connector R1/4 M for hose iØ 3/8" push on (SS)
• 10 901006 Hose Heavy Duty up to 212 °F / 100 °C iØ 3/8" black
• 1 900498 Reducer 1/4" NPT M x G1/4 F (SS)
• 1 900499 Reducer 1/8" NPT M x G1/4 F (SS)
• 1 900495 Reducer 1/4-28 UNF M x G1/4 F (SS)

Content:

• 1 108648 Bracket STAR HD C-section 2pt G1/4 F (SS)
• 2 116602 Support flange STAR with cover clip for protection cap
• 2 109999 Protection cap STAR HD perma (Pl)
• 2 109952 U-Bolt
• 2 113972 Purge connection with manual valve R1/4 M x G1/4 F (Br/NP)
• 2 900500 Angle 90° R1/4 M x G1/4 F (SS)
• 4 912169 Hose connector R1/4 M for hose iØ 3/8" push on (SS)
• 20 901006 Hose Heavy Duty up to 212 °F / 100 °C iØ 3/8" black
• 2 900498 Reducer 1/4" NPT M x G1/4 F (SS)
• 2 900499 Reducer 1/8" NPT M x G1/4 F (SS)
• 2 900495 Reducer 1/4-28 UNF M x G1/4 F (SS)
• 2 109695 Hose spiral guard 1 inch / 25 mm (Pl)

Content:

• 1 109671 Bracket STAR HD C-section 3pt G1/4 F (SS)
• 3 116602 Support flange STAR with cover clip for protection cap
• 3 109999 Protection cap STAR HD perma (Pl)
• 2 109952 U-Bolt
• 3 113972 Purge connection with manual valve R1/4 M x G1/4 F (Br/NP)
• 3 900500 Angle 90° R1/4 M x G1/4 F (SS)
• 6 912169 Hose connector R1/4 M for hose iØ 3/8" push on (SS)
• 30 901006 Hose Heavy Duty up to 212 °F / 100 °C iØ 3/8" black
• 3 900498 Reducer 1/4" NPT M x G1/4 F (SS)
• 3 900499 Reducer 1/8" NPT M x G1/4 F (SS)
• 3 900495 Reducer 1/4-28 UNF M x G1/4 F (SS)
• 2 109695 Hose spiral guard 1 inch / 25 mm (Pl)

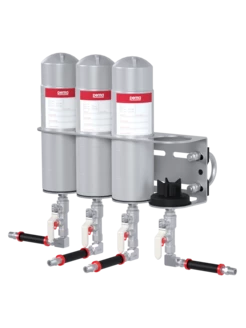

Content:

• 1 109674 Bracket STAR HD C-section 4pt G1/4 F (SS)
• 4 116602 Support flange STAR with cover clip for protection cap
• 4 109999 Protection cap STAR HD perma (Pl)
• 2 109952 U-Bolt
• 4 113972 Purge connection with manual valve R1/4 M x G1/4 F (Br/NP)
• 4 900500 Angle 90° R1/4 M x G1/4 F (SS)
• 8 912169 Hose connector R1/4 M for hose iØ 3/8" push on (SS)
• 40 901006 Hose Heavy Duty up to 212 °F / 100 °C iØ 3/8" black
• 4 900498 Reducer 1/4" NPT M x G1/4 F (SS)
• 4 900499 Reducer 1/8" NPT M x G1/4 F (SS)
• 4 900495 Reducer 1/4-28 UNF M x G1/4 F (SS)
• 2 109695 Hose spiral guard 1 inch / 25 mm (Pl)
