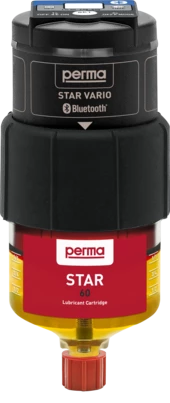

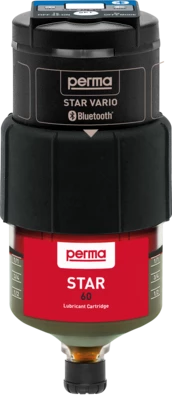

perma STAR VARIO BLUETOOTH se usa para la lubricación de puntos individuales de rodamientos, cojinetes, guías de deslizamiento, engranajes abiertos, cremalleras, husillos, retenes para ejes y cadenas. Gracias a la dosificación extremadamente precisa del lubricante, el perma STAR VARIO es idóneo para lubricar motores eléctricos con dosis de lubricante especificada.
Cintas transportadoras
Bombas
Ventiladores
Motores eléctricos
Chains
Spindles
Open gears
Sliding bearings
Roller bearings
La presión generada de 109 psi | 7.5 bares permite montaje a distancia de hasta 16 ft | 5.00 m
- El montaje fuera de áreas de peligro o en zonas de fácil acceso aumenta la seguridad en el trabajo
- Mayor disponibilidad de los equipos, dado que el cambio LC se puede realizar sin problemas durante el servicio
- Aplicación universal tanto a temperaturas bajas como más elevadas
La pantalla LCD con pulsador de ajuste indica el tiempo de dosificación, el tamaño del LC y el estado de servicio
- Manejo sencillo e intuitivo
- El cambio en los ajustes se puede realizar en cualquier momento
- Coste de adquisición único para STAR VARIO BLUETOOTH Motor
Compatible con Gateway BLUETOOTH
- Integración rápida y sencilla
- Acceso mundial a sus sistemas de lubricación perma con Bluetooth a través de perma CONNECT
- Procesos de mantenimiento remoto aún más eficientes
Función Bluetooth
- Manejo fácil mediante perma CONNECT
- Configuración, control y mantenimiento en tiempo real desde la distancia
- Más seguridad en el trabajo
| Motor | Electromecánico |
|---|---|
| Tensión de alimentación | Juego de pilas STAR VARIO 4,5 V |
| Carcasa | Plástico transparente |
| Tiempo de dosificación | 1, 2, 3, ..., 12 meses | 1, 2, 3, ..., 52 semanas STAR LC 60: + 15, 18, 21, 24 meses STAR LC 500: máx. 6 meses |
| Volumen de lubricante | 60, 120, 250, 500 cc | 2.03, 4.06, 8.45, 16.91 fl. oz. |
| Temperatura de servicio | -4 °F a 140 °F | -20 °C a 60 °C (Alkaline) | -40 °F a 140 °F | -40 °C a 60 °C (Lithium) |
| Presión de operación | 109 psi | 7.5 bares |
| Clase de protección | IP 65 | IP 67 |
| Lubricantes | Grasas hasta NLGI 2 | aceites |
| Mangueras de distintas longitudes máx. | 16 ft | 5.00 m |
| CE | ✓️ |
- Manual de instrucciones
- Folleto del producto perma STAR VARIO BLUETOOTHs
- Manual resumindo STAR VARIO BLUETOOTH
- Dibujo perma STAR VARIO BLUETOOTH + STAR LC 120
- Dibujo perma STAR VARIO BLUETOOTH + STAR LC 250
- Dibujo perma STAR VARIO BLUETOOTH + STAR LC 500
- Dibujo perma STAR VARIO BLUETOOTH + STAR LC 60
- Dibujo perma STAR VARIO BLUETOOTH Motor
¿Todavía tiene preguntas?
Póngase en contacto con nosotros de forma fácil por teléfono o correo electrónico para una consulta individual.
Frequently Asked Questions About perma STAR VARIO BLUETOOTH
Find answers to common questions about configuring, monitoring and using perma STAR VARIO BLUETOOTH for automatic single-point lubrication.
perma STAR VARIO BLUETOOTH is designed for the automatic lubrication of a single lubrication point. It can be used with roller and sliding bearings, sliding guides, open gears, gear racks, spindles, shaft seals and chains. Its precise lubricant delivery also makes it suitable for electric motors that require defined lubricant quantities.
Both systems provide precise, electromechanical single-point lubrication with adjustable discharge settings and lubricant canisters in 60, 120, 250 and 500 cc sizes. The Bluetooth model also connects with perma CONNECT, allowing users to configure, monitor and maintain the lubrication system from a compatible smart device within a Bluetooth range of up to 30 m.
perma CONNECT can be used to configure and monitor perma STAR VARIO BLUETOOTH remotely. When connected to the lubricator, users can view live status information, turn the lubricator on or off, change discharge settings, view lubricant fill levels and initiate purge cycles from a distance of up to 30 m.

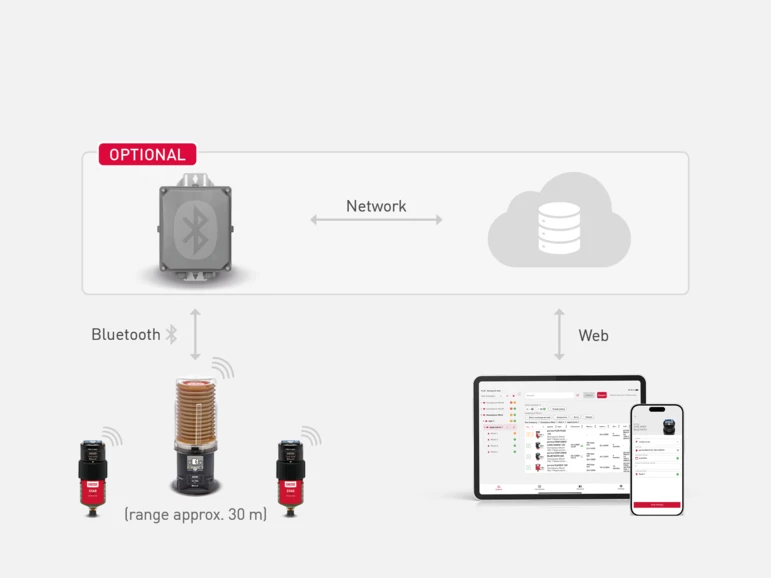

No. perma STAR VARIO BLUETOOTH operates automatically without a Gateway BLUETOOTH. Users can configure and monitor nearby lubricators directly through a compatible Bluetooth connection using the perma CONNECT app. A Gateway BLUETOOTH is only needed when access is required beyond the normal Bluetooth range. The gateway transmits operating data from compatible lubrication systems so users can monitor current lubricator information through perma CONNECT from outside the immediate area.
Yes. perma STAR VARIO BLUETOOTH operates automatically according to its configured discharge setting and does not depend on a continuous Bluetooth connection to dispense lubricant. Bluetooth provides additional configuration and monitoring capabilities rather than powering the lubrication process. This is supported by the product page’s description of the unit as fully automatic and battery-powered.
The correct configuration depends on the amount of lubricant required by the application and how frequently it should be delivered. perma STAR VARIO BLUETOOTH is available with 60, 120, 250 and 500 cc lubricant canisters. The discharge period is selected through the drive, with standard settings from 1 to 12 months or 1 to 52 weeks. The appropriate canister size and discharge setting should be selected based on the equipment requirements, operating conditions and desired lubricant output.
Yes. The system provides pressure build-up of up to 109 psi, or 7.5 bar, and supports remote mounting with a lubrication line up to 16 feet, or 5 meters, depending on the application. This can place the lubricator in a safer or more accessible location while continuing to supply the lubrication point.
The system can dispense grease up to NLGI 2 or oil. The lubricant should be selected based on the equipment manufacturer’s requirements, the application and operating conditions. When the system is remotely mounted, the lubrication line and connections should be prepared according to perma’s installation instructions.
Before installation, clean the lubrication point and remove the grease fitting. Prefill the lubrication point and any lubrication lines with the same lubricant contained in the lubrication system. Confirm that the mounting position, connection parts and lubricant are suitable for the application, then install and activate the system according to perma’s installation instructions.
